What is an Electrical Switchgear? Basics & Voltages Breakdown

Electrical switchgear is widely used as the primary infrastructure for handling, regulating, and safeguarding electrical circuits in power distribution systems. One of its main functions is to protect the supply of electrical power by excluding faults, avoiding overloads, and allowing for maintenance while keeping only a section out of service. Electrical Switchgears are used in various industries, commercial buildings, and residential areas where electrical safety is a key consideration.

This blog dives into the basics of electrical switchgear and offers a voltage-level breakdown to help you understand its functionality better.

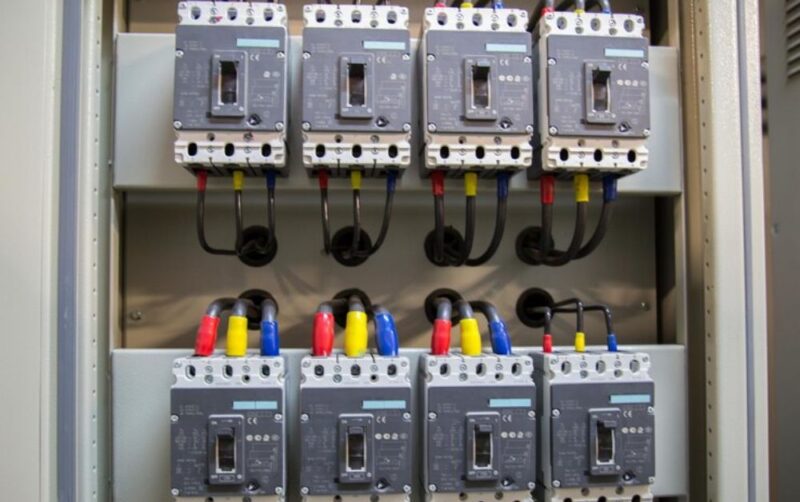

The Basics of Electrical Switchgear

Switchgear is a compact formation of electrical devices in the form of circuit breakers, switches and fuses used for serving the purpose of operating electrical power. Here’s what makes switchgear critical:

• Control and Protection: They assist in regulating the amount of current as well as prohibiting such faults as short circuiting or overloading.

• Isolation: Switchgear allows the isolation of faulty parts for maintenance, keeping the rest of the system operational.
• Reliable Operation: By monitoring and managing electrical systems, switchgear ensures uninterrupted power supply and safety.



Key Components of Switchgear Systems

Switchgear systems are made up of:

• Circuit Breakers: Automatically interrupts the power flow when a fault is detected.

• Disconnect Switches: Manually isolates parts of the circuit for safe maintenance.

• Protective Relays: Detect abnormalities and trigger appropriate protective measures.

• Fuses: Protects circuits from overcurrent by breaking the connection when needed.



Voltages Breakdown of Switchgear

Switchgear is classified based on the voltage levels it handles. Each category is designed for specific applications and environments.

Low Voltage (LV) Switchgear

• Voltage Range: Up to 1 kV.
• Applications: Used in residential buildings, small industries, and commercial setups.
• Features: Compact size, easy installation, and simple operation.



Medium Voltage (MV) Switchgear

• Voltage Range: 1 kV to 36 kV.
• Applications: Found in industrial plants, power generation facilities, and large commercial buildings.
• Features: Advanced fault detection, higher insulation requirements, and robust design.



High Voltage (HV) Switchgear

• Voltage Range: Above 36 kV.
• Applications: Used in power transmission networks, substations, and large-scale industries.
• Features: Designed for handling high power loads, offers excellent reliability and safety.



Types of Electrical Switchgear

Switchgear can also be categorized based on its structure and insulation:

• Outdoor Switchgear: Used in open environments; designed to withstand harsh weather conditions.

• Indoor Switchgear: Installed indoors, protected from environmental factors.

• Gas-Insulated Switchgear (GIS): Compact and suitable for limited spaces; filled with insulating gas.



Why is Switchgear Essential?

• Safety: Protects both personnel and equipment from electrical hazards.

• Efficiency: Ensures smooth operation of electrical systems without interruptions.

• Flexibility: Allows for system modifications and maintenance without shutting down the entire grid.



Conclusion

Electrical switchgear plays a pivotal role in managing and protecting electrical systems across various voltage levels. Understanding its basics and voltage breakdown can help in choosing the right switchgear for specific applications.
